DrawThis Schema Creator
Project Overview
DrawThis is a web-based Database Schema Builder designed to simplify the process of creating and designing database structures. It provides an intuitive, visual environment where users can develop complex database schemas without writing a single line of code. The platform uses drag-and-drop interactions for creating tables and fields, allows visual definition of relationships between entities, and enables export of the schema design into a structured JSON format.
This project showcases my proficiency in building complex, interactive front-end applications, integrating specialized libraries like React Flow and DnD Kit, and developing tools that streamline technical workflows. DrawThis makes database schema creation accessible to both technical and non-technical users, especially during the early planning stages of application development.
Key Features
- Drag-and-Drop Table Creation: Users can easily create new tables by dragging table templates from a sidebar onto a visual canvas.
- Interactive Field Management: Add, edit, and delete fields directly within table nodes with inline editing capabilities.
- Visual Relationship Mapping: Draw connections between tables to define relationships (one-to-one, one-to-many, many-to-many) with visual cues.
- JSON Export: Export the complete schema design as structured JSON for integration with other tools or frameworks.
Challenges
Building DrawThis involved several complex technical challenges that required innovative solutions:
- Complex Drag-and-Drop Interactions: Implementing seamless drag-and-drop functionality between the component sidebar and the canvas required careful integration of the DnD Kit library with React Flow's node system.
- Relationship Visualization: Creating intuitive visual representations of database relationships while maintaining accuracy in schema structure was particularly challenging.
- State Management: Managing the state of multiple interactive elements (tables, fields, relationships) while ensuring data consistency throughout the application required a robust state management approach.
- JSON Schema Generation: Translating the visual representation of the database schema into a properly structured JSON format that could be used by other tools demanded careful data modeling.
- Performance Optimization: Ensuring smooth performance with complex interactive elements, especially when users created large schema designs with many tables and relationships.
Approach & Solution
My development process began with extensive research into existing visual database design tools such as dbdiagram.io and DrawSQL to understand standard features and identify areas for simplification and improvement within a web context.
I prioritized creating a clean interface with core functionality that would streamline the database design workflow. The MVP featured a canvas where users could drag table nodes from a palette, edit field names and types directly on the nodes, and draw relationship lines between tables. I also included an option to export the schema layout as JSON data for those who wanted to work with the schema offline or integrate it with other tools.
For the technical implementation, I chose React Flow as the foundation for the interactive canvas due to its powerful node and edge management capabilities. I integrated DnD Kit for the drag-and-drop functionality between the sidebar and canvas, which provided a more intuitive experience than traditional form-based schema creation.
To solve the state management challenges, I implemented a custom state management solution that tracked changes to the schema in real-time and ensured data consistency across the application. For performance optimization, I implemented node virtualization to efficiently render only the visible elements on larger schemas, which significantly improved the user experience when working with complex database designs.
User Experience Design
The success of DrawThis hinged on creating an intuitive user experience that simplified the technically complex process of database schema design. I focused on making the interface approachable for users with varying levels of database knowledge, from beginners to experienced database administrators.

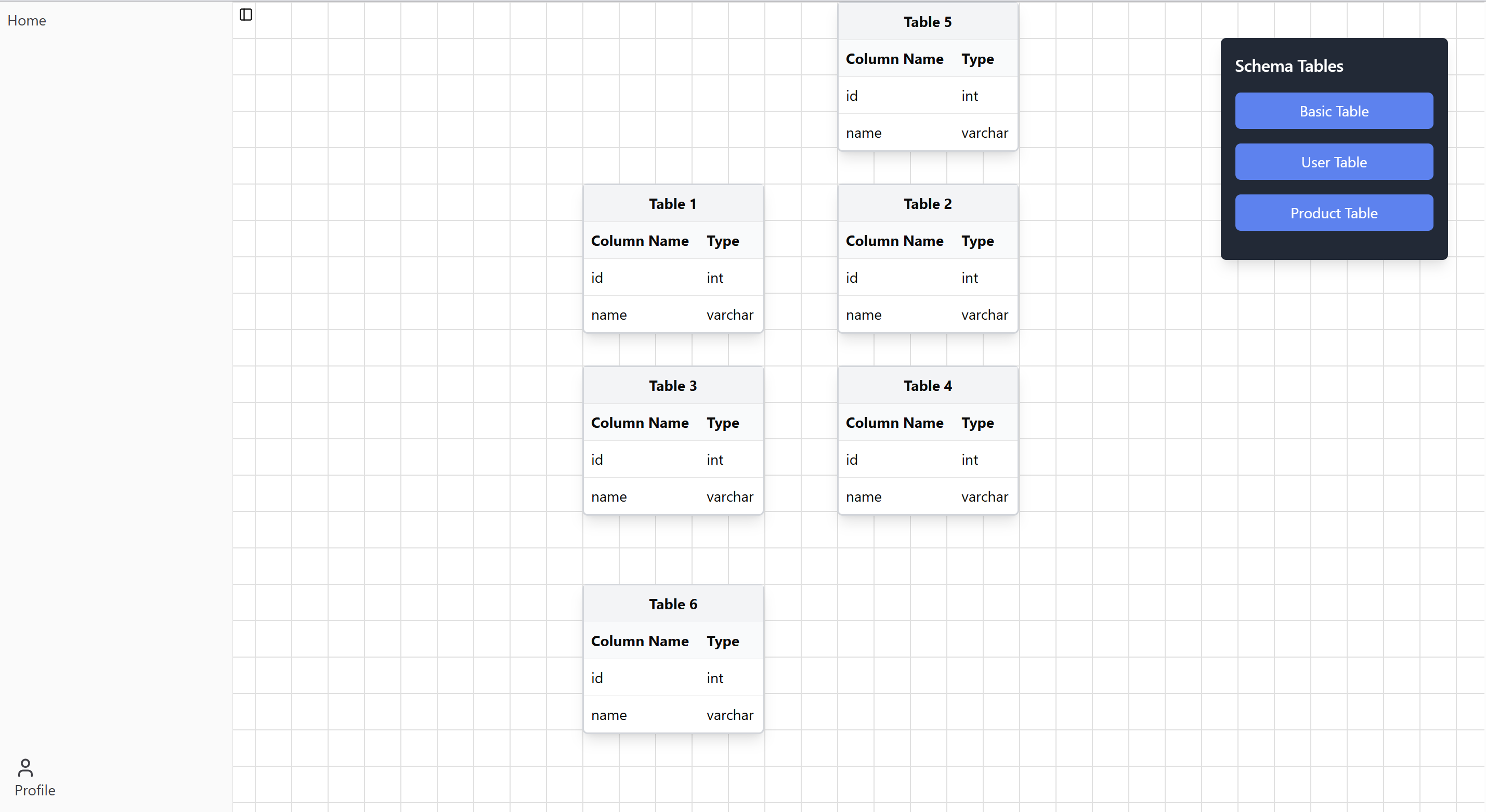

The homepage features a main schema canvas, visible only to registered users. Here, users can interact with the schema builder to create nodes and design database schemas. The canvas is a zoomable, pannable workspace powered by React Flow, allowing users to structure their database visually with freedom of movement and organization.
The sidebar provides easy access to table templates that users can drag onto the canvas. Once placed, the table nodes are fully interactive, allowing users to add and edit fields directly within the node. Users can also create relationships by drawing lines between table nodes, visually mapping foreign key connections in a way that mirrors how database relationships are conceptualized rather than how they're coded.
Reflection
Developing DrawThis was a valuable opportunity to create a tool that bridges the gap between conceptual database design and technical implementation. The project allowed me to apply my knowledge of modern front-end development techniques while solving real-world problems faced by developers during the database planning phase.
One of the key insights I gained from this project was the importance of intuitive visual interfaces for technical tasks. By transforming database schema creation from a code-heavy process to a visual one, DrawThis makes this crucial development step more accessible and collaborative, especially for teams with members of varying technical backgrounds.
Looking forward, I see potential to expand DrawThis with additional features like SQL generation, database migration script creation, and integration with popular ORMs. The project has strengthened my skills in building complex interactive web applications and reinforced my belief in creating tools that simplify technical workflows through thoughtful user experience design.
